Keyboard Tray System Builder by UPLIFT Desk

SKU: KIT-KBT-Multi
Was:
$114
$144
Was:
$114
$144

Ships same business day if ordered by 3pm Central



Overview

Features

  • Work comfortably and maximize productivity. Properly position your keyboard height, depth, and angle for optimal ergonomics
  • Beautifully designed keyboard platforms are the perfect size to fit your mouse and keyboard side-by-side securely
  • Positioning your keyboard and mouse closer to your lap height is better for ergonomics
  • Quick-Adjust Mechanism is compatible with any desktop and has a simple lift-and-release feature for proper adjustment. Both mechanisms include 11" and 21" long, under desk mounting tracks to enable installation on almost any desk
  • Use the single knob on our Economy Mechanism features to set both height and tilt of the keyboard tray
  • 360 degree swivel mechanism allows for convenient storage by giving you the option to store the tray under your desk
  • Platform tilt angle is indicated on the Quick-Adjust Mechanism and allows you to tilt the keyboard away from you to ensure perfect posture while typing and mousing
  • This accessory is also compatible with non-UPLIFT desks
  • 15 year warranty - all UPLIFT Desk products include a 15 year warranty
Kit-KBT-Multi - Keyboard Tray System Builder

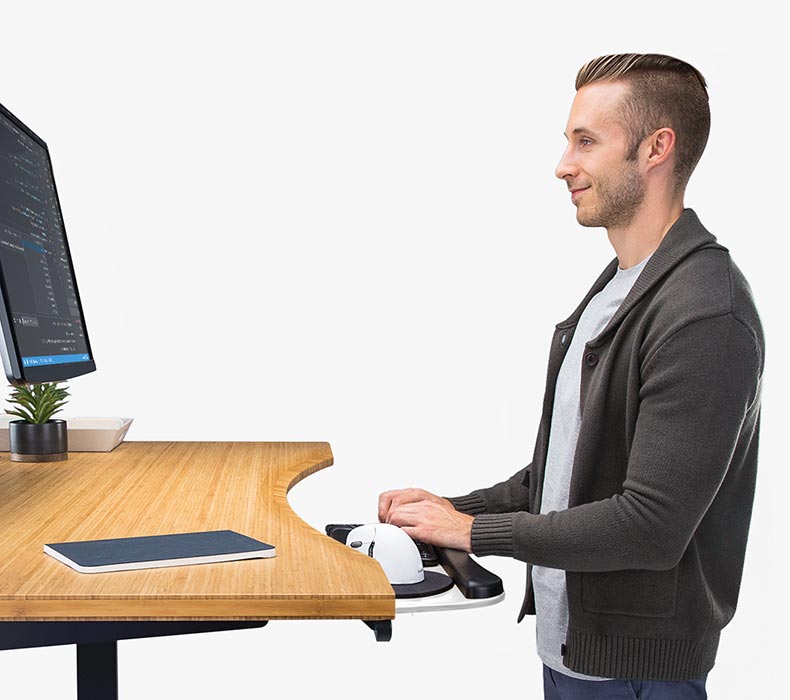

Type comfortably with an ergonomic keyboard

Carbonized Bamboo Curve Desktop

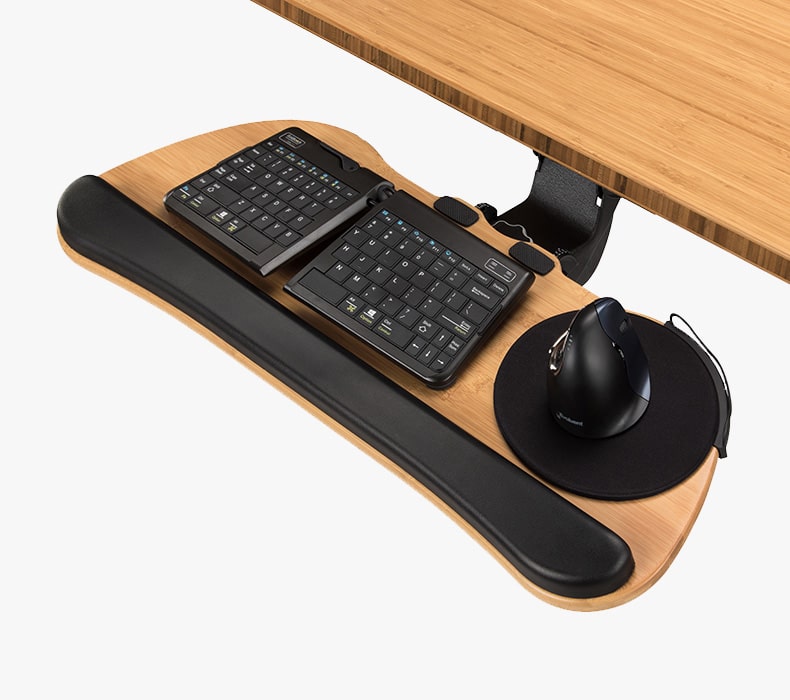

Type with Proper Ergonomics

Type comfortably for healthier, happier work life. When your keyboard is positioned at the correct height, depth, and angle, you can achieve proper ergonomic positioning and reduce future pain. Not sure what height is correct for your keyboard tray, desk, and chair? We have an ergonomic calculator online for you to view.

Work Better with a Large Platform

Our 27" keyboard platforms are large enough to hold your mouse and keyboard side-by-side. Less reaching will result in less strain and pain on the body. In addition to the beautiful and eco-friendly bamboo option, you can also opt for black or white tray finishes. Once you have chosen the color, select your platform. Go with the standard thickness or the ultra-thin which lets you get your keyboard tray to a lower position. Prefer a mouse platform? The Switch tray has a built-in mouse platform that can slide from right to left for ambidextrous use.

Work better with a larger platform
Type with straight wrists to reduce pain

Type with Straight Wrists

When you position your keyboard and mouse closer to your lap, you can type with straight wrists. This position will help to avoid sprains and repetitive stress injuries in the future. Bending your elbows at a 90-degree angle will also ensure you are typing at the correct ergonomic angle. Stay comfortable as you work to increase productivity.

Compatible Design

The Quick-Adjust Mechanism by UPLIFT Desk has a simple lift-and-release feature for proper keyboard tray adjustment. It is compatible with most desktops, but the V2 Standing Desk by UPLIFT Desk is highly recommended due to its 30" depth.

Both the Quick-Adjust and the Economy Mechanism include 11" and 21" long under desk mounting tracks for installation on almost any desk. Be sure that your desk is deeper than the track for a proper fit.

The optional track spacer allows you to slide your keyboard tray completely under your desk, freeing up space around your work area. A state of the art U-shaped design allows you to connect it over most crossbeams and your existing hardware without damaging your desk.

Quick-Adjust Mechanism by UPLIFT Desk
Our Economy Mechanism features a single knob for easy adjustments

Economy Mechanism

The knob on our Economy Mechanism is used to set both height and tilt of the keyboard tray. Twist the mechanism’s adjustment knob counterclockwise to loosen the mechanism. Lower the tray, then twist the adjustment knob clockwise to tighten the mechanism. Adjust your tray until you can type comfortably.

360 degree Swivel

Both mechanisms offer 360-degree swivel. This feature allows for convenient storage by giving you the option to pivot the tray to the left or right, swivel the tray out of your way when co-workers drop by for a brainstorm session or even store the tray under your desk on a short track.

Swivel your keyboard tray out of the way with the 360-degree mechanism
Adjust the tilt to find your perfect typing angle

Find Your Correct Tilt Angle

The platform tilt angle can be adjusted on both the Quick-Adjust and Economy Mechanism and allows you to tilt the keyboard away from you to ensure perfect posture while typing and mousing. The Economy Mechanism has a tilt range of 15-degrees negative or positive. For more adjustments, opt for the Quick-Adjust for a range of 20-degrees negative to 10-degrees positive.



Videos




Customer Photos

Customer Photo Gallery

Bamboo V2 Standing Desk

Bamboo V2 Standing Desk

Bamboo V2 L-Shaped Standing Desk

Bamboo V2 L-Shaped Standing Desk

Bamboo V2 Standing Desk

Sly W.

Bamboo V2 Standing Desk

Bamboo V2 Standing Desk

Stewart P.

Bamboo V2 Standing Desk



Warranty + Returns




Assembly



Specs

Big Standard Keyboard Tray
Platform dimensions 27" W x 11.5" D x 0.37" H
Mouse pad dimensions 8" diameter
Platform material Bamboo or MDF
Wrist rest material Self-skinning polyurethane foam (no latex)
Mouse pad material Polyurethane with Lycra cover
Weight limit 10 lb
Includes Platform, cord catcher, removable wrist rest and mouse pad
Shipping dimensions 27.5" L x 11.25" W 1.75" H, 4.5 lb

Big Ultra-Thin Keyboard Tray
Platform dimensions 27" W x 11" D x 0.25" H
Mouse pad dimensions 8" diameter
Platform material Phenolic resin
Wrist rest material Self-skinning polyurethane foam (no latex)
Mouse pad material Polyurethane with Lycra cover
Weight limit 10 lb
Includes Platform, cord catcher, removable wrist rest and mouse pad
Shipping dimensions 28.25" L x 13" W 1.75" H, 5.75 lb

Switch Ultra-Thin Keyboard Tray
Platform dimensions 19.75" W x 12.5" D x 0.25" H
Mouse pad dimensions 9" diameter
Platform material Phenolic resin
Wrist rest material Self-skinning polyurethane foam (no latex)
Mouse pad material Polyurethane with Lycra cover
Weight limit 10 lb
Includes Platform, cord catcher, removable wrist rest and mouse pad
Shipping dimensions 25" W x 13" D 3" H, 9.1 lb

Economy Mechanism
Adjustment mechanism Single knob sets both height & tilt of keyboard tray
Swivel at mechanism 360 degree
Mechanism distance 2.25" end of track to rear of keyboard tray
Height adjustment 6" height adjustment, spring assistance
1.75" above underside of desktop w/o track spacer
4.25" below underside of desktop w/o track spacer
Tilt adjustment 15 degrees negative to 15 degrees positive
Track lengths 21" L (recommended)
11" L (for limited space)
Certifications Meets BIFMA x 5.5-1998 Standards
Shipping dimensions 22" L x 9" W 4.25" H, 8.4 lb

Quick-Adjust Mechanism
Height adjustment 8" total (3" above track to 5" below)
Tilt adjustment 20 degrees negative to 10 degrees positive
Track lengths 21" L (standard)
11" L (for limited space)
Swivel at mechanism 360 degree
Shipping dimensions 25" L x 13" W 5" H, 8.6 lb


FAQ

Frequently Asked Questions

  1. What is the track length for the Quick-Adjust and Economy Mechanism?

    Choose between 11" or 21". Be sure your desk is deeper than the track for a proper fit. If you have crossbars, a lip at the edge, or other impediments under your desk, the optional track spacer may help clear those.

  2. What are the mouse pad dimensions?

    8" diameter.

  3. How can I find my correct ergonomic typing position?

    Check out our ergonomic calculator online.

  4. What is the height adjustment range for the Economy Mechanism?

    6" height adjustment with spring assistance (1.75" above track to 4.25" below).

  5. What is the height adjustment range for the Quick-Adjust Mechanism?

    Height adjustment - 8" total (3" above track to 5" below).

  6. What is the difference between Quick-Adjust and Economy mechs?

    The Quick-Adjust Mechanism has a dial for tilt angle modifications and simple, knob-free height adjustment means you simply lift the tray to adjust the height up to 8". The Economy Mechanism has a twist-and-lock knob to make up to 6" of height adjustments as well as tilt changes.

  7. What is the difference between the keyboard platform choices?

    The Big Standard is the thickest and made of bamboo or medium-density fiberboard (MDF). The Ultra-Thin and Switch are both made of durable phenolic resin. The Big Ultra-Thin, Big Bamboo, and Big Standard platforms are all 27" wide and allow your mouse and keyboard to sit on the same platform, while the Switch has an ambidextrous mouse platform that can be shifted to the right or left side of your keyboard.

  8. Does the wrist rest contain any latex?

    No, the wrist rests are 100% polyurethane with no latex rubber.

Big Ultra-Thin Keyboard Tray with Economy Mechanism



Why Buy?

Achieve a comfortable ergonomic typing position and reduce muscle strain with the Ultra-Thin Keyboard Tray System

Features & Specs

  • Includes keyboard tray, ambidextrous mouse platform, and cord catcher
  • Economy Mech has a single knob to make up to 6" of height adjustments as well as tilt changes
uplift big ultra-thin keyboard tray

Big Ultra-Thin Keyboard Tray with Quick-Adjust Mechanism



Why Buy?

Achieve a comfortable ergonomic typing position and reduce muscle strain with the Ultra-Thin Keyboard Tray System

Features & Specs

  • Quick-Adjust Mechanism has a dial for tilt angle modification. Lift the tray to adjust the height up to 8"
  • A thinner keyboard tray sits closer to your lap, for better ergonomics
uplift big ultra-thin keyboard tray

Big Ultra-Thin Keyboard Tray with Economy Mechanism



Why Buy?

Achieve a comfortable ergonomic typing position and reduce muscle strain with the Ultra-Thin Keyboard Tray System

Features & Specs

  • Includes keyboard tray, ambidextrous mouse platform, and cord catcher
  • Economy Mech has a single knob to make up to 6" of height adjustments as well as tilt changes
uplift big ultra-thin keyboard tray

Big Ultra-Thin Keyboard Tray with Quick-Adjust Mechanism



Why Buy?

Achieve a comfortable ergonomic typing position and reduce muscle strain with the Ultra-Thin Keyboard Tray System

Features & Specs

  • Quick-Adjust Mechanism has a dial for tilt angle modification. Lift the tray to adjust the height up to 8"
  • A thinner keyboard tray sits closer to your lap, for better ergonomics
uplift big ultra-thin keyboard tray

Big Standard Keyboard Tray with Economy Mechanism



Why Buy?

Position your keyboard height, depth, and angle for optimal ergonomics, resulting in maximized comfort

Features & Specs

  • 27" keyboard platform is large enough to fit your mouse and keyboard side-by-side securely
  • Economy Mechanism has a single knob to make up to 6" of height adjustments as well as tilt changes
uplift big standard keyboard tray

Big Standard Keyboard Tray with Quick-Adjust Mechanism



Why Buy?

Position your keyboard height, depth, and angle for optimal ergonomics, resulting in maximized comfort

Features & Specs

  • Quick-Adjust Mechanism has a dial for tilt angle modification. Lift the tray to adjust the height up to 8"
  • 27" keyboard platform is large enough to fit your mouse and keyboard side-by-side securely
uplift big standard keyboard tray

Big Standard Keyboard Tray with Economy Mechanism



Why Buy?

Position your keyboard height, depth, and angle for optimal ergonomics, resulting in maximized comfort

Features & Specs

  • 27" keyboard platform is large enough to fit your mouse and keyboard side-by-side securely
  • Economy Mechanism has a single knob to make up to 6" of height adjustments as well as tilt changes
uplift big standard keyboard tray

Big Standard Keyboard Tray with Quick-Adjust Mechanism



Why Buy?

Position your keyboard height, depth, and angle for optimal ergonomics, resulting in maximized comfort

Features & Specs

  • Quick-Adjust Mechanism has a dial for tilt angle modification. Lift the tray to adjust the height up to 8"
  • 27" keyboard platform is large enough to fit your mouse and keyboard side-by-side securely
uplift big standard keyboard tray

Big Bamboo Keyboard Tray with Economy Mechanism



Why Buy?

This tray is made from beautiful Moso bamboo and is large enough for a keyboard and mouse pad.

Features & Specs

  • Eco-friendly and supports you while you type
  • Free up desktop space
  • Economy Mechanism has a single knob to make up to 6" of height adjustments as well as tilt changes
uplift big bamboo keyboard tray

Big Bamboo Keyboard Tray with Quick-Adjust Mechanism



Why Buy?

This tray is made from beautiful Moso bamboo and is large enough for a keyboard and mouse pad.

Features & Specs

  • Quick-Adjust Mechanism has a dial for tilt angle modification. Lift the tray to adjust the height up to 8"
  • Eco-friendly and supports you while you type
  • Free up desktop space
uplift big bamboo keyboard tray

Switch Keyboard Tray with Economy Mechanism



Why Buy?

This keyboard tray features a rotating mouse pad that can "switch" between left- and right-hand configurations.

Features & Specs

  • 360 degrees of swivel, for repositioning or storage
  • Economy Mech has a single knob to make up to 6" of height adjustments as well as tilt changes
uplift switch keyboard tray

Switch Keyboard Tray with Quick-Adjust Mechanism



This keyboard tray features a rotating mouse pad that can "switch" between left- and right-hand configurations.

Features & Specs

  • 360 degrees of swivel, for repositioning or storage
  • The Quick-Adjust Mechanism has a dial for tilt angle modification. Lift the tray to adjust the height up to 8"
uplift switch keyboard tray

Economy Mechanism by UPLIFT Desk



Why Buy?

Affordable and ergonomic—a single knob adjustment on the Economy Mechanism sets both height & tilt of keyboard tray

Features & Specs

  • Adjust your keyboard tray with a single knob for optimal ergonomics while typing
  • Enjoy up to 6" of height adjustment features with spring assistance
uplift keyboard tray economy mechanism

Quick-Adjust Mechanism by UPLIFT Desk



Why Buy?

The Quick-Adjust Mechanism sets your ideal position in motion much faster compared to the Economy Mechanism due to its sleek design

Features & Specs

  • Simply lift the tray to adjust the angle for a more comfortable typing position or use the dial to set your desired angle
  • Enjoy up to 8" of height adjustment features
uplift keyboard tray quick-adjust mechanism





Why Buy?

This tray is made from beautiful Moso bamboo and is large enough for a keyboard and mouse pad.

Features & Specs

  • Eco-friendly and supports you while you type
  • Free up desktop space
  • Lift-and-release height adjustment
  • Mounts on almost any desk
  • 360 degrees of swivel
  • Simple positive and negative tilt adjustment
uplift large bamboo keyboard tray
